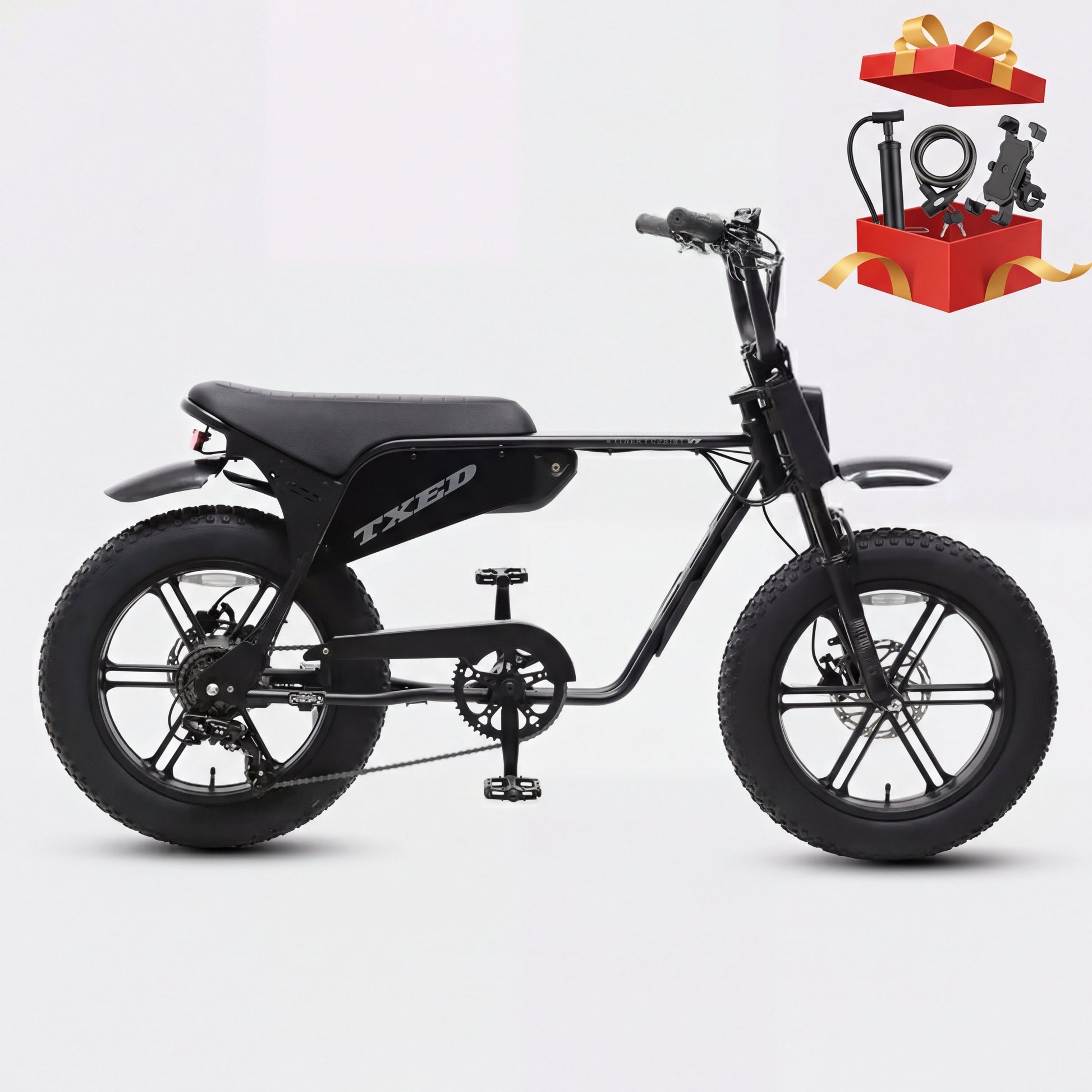

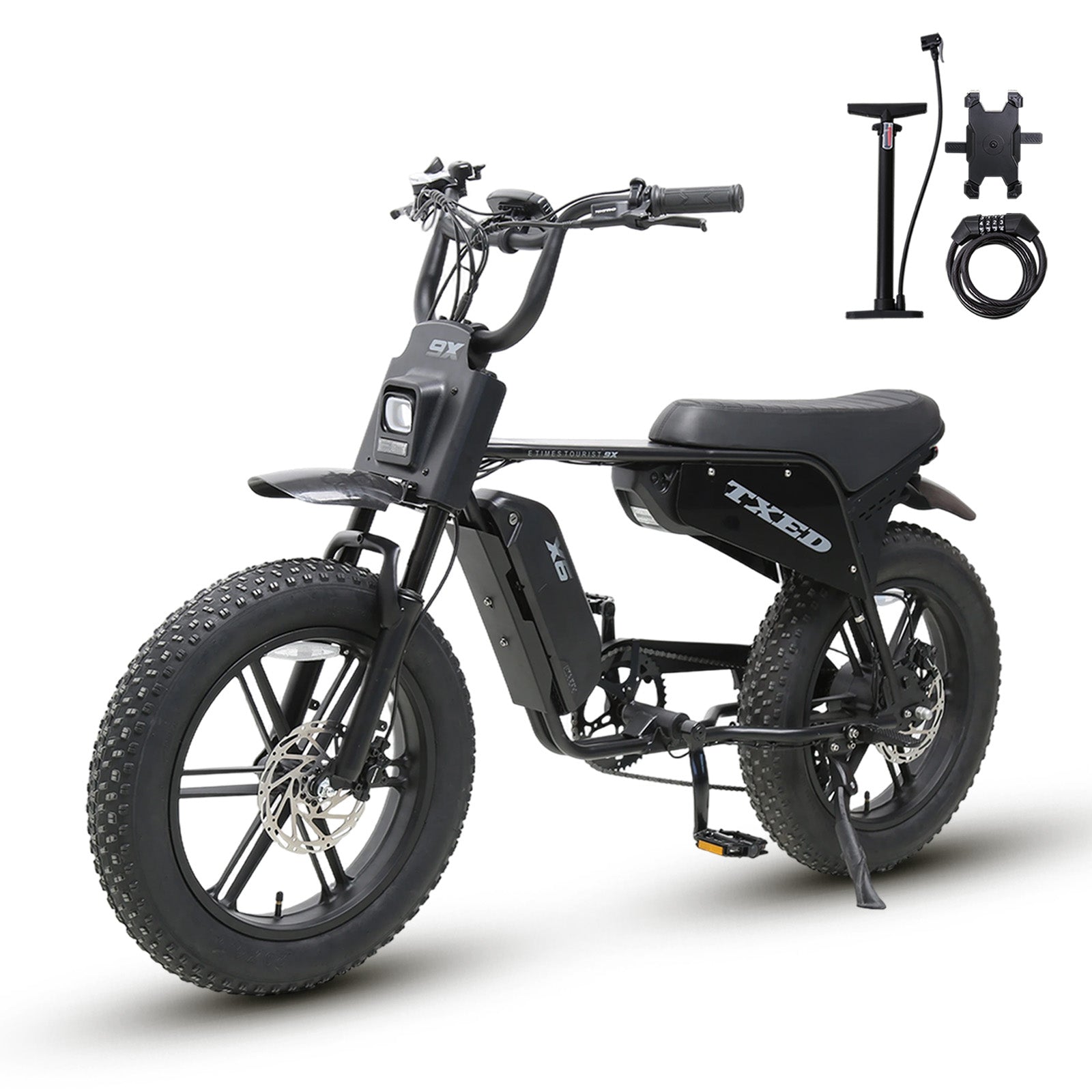

What's in the box
85% assembled, with tools and instructions for final setup.
- Maverick e-bike × 1
- 48V 15Ah battery × 1
- Battery charger × 1
- Assembly tool kit × 1

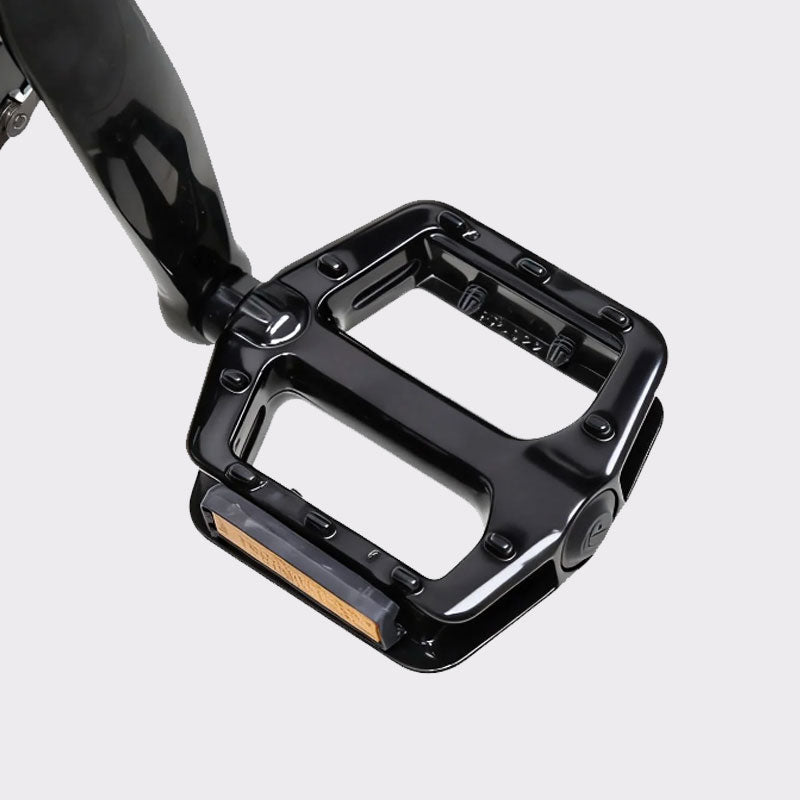

- Pedals × 2
- Pre-fitted handlebars × 1
- User manual × 1
- Battery keys
- Tyre pump × 1 (free)
- Bike lock × 1 (free)
- Phone holder × 1 (free)
Maverick setup help
Position and secure the pre-fitted handlebars, then complete the remaining assembly and pre-ride checks using the supplied manual and tools.
Our team can help with setup and troubleshooting. Email salesuk@txedbikes.com with your model and order number.
250W
Continuous-Rated Motor
Up to 50 miles
Range
15.5 mph
Assisted Speed
TÜV Tested
Model sample testing
20" × 4.0" fat tyres
Fat tyres
150 kg (330 lb)
Maximum payload
TXED ON YOUTUBE
Rider Reviews & Video Guides
Rider reviews and assembly guides for TXED e-bikes.
A 50-mile ride with Maverick
John on a Bike · YouTube
Unboxing & assembly
John on a Bike · YouTube
Maverick assembly guide
TXED · YouTube
More comfort on rough streets
From uneven cycle paths to patchy tarmac, 20 × 4-inch tyres and front suspension help soften the bumps, so your daily route feels more comfortable.
A helping hand on the hills
Five levels of pedal assistance let you choose how much help you want. Use the Shimano 7-speed gears to find a comfortable pedalling rhythm as the road rises or levels out.
Smooth, controlled braking
Front and rear hydraulic disc brakes with 180mm rotors help you manage your speed and slow down smoothly as you approach a bend or come to a stop.

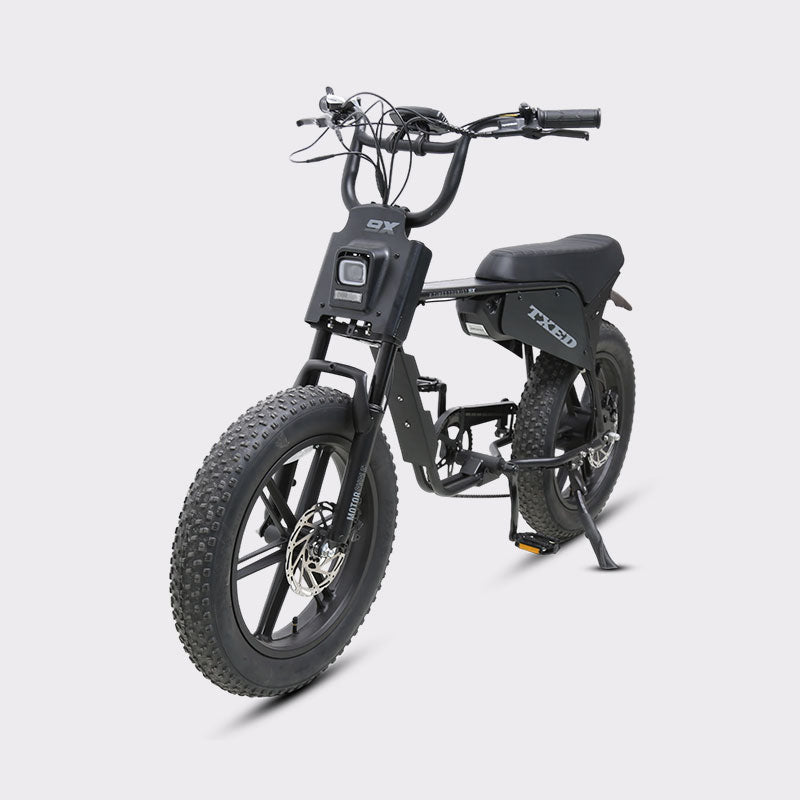

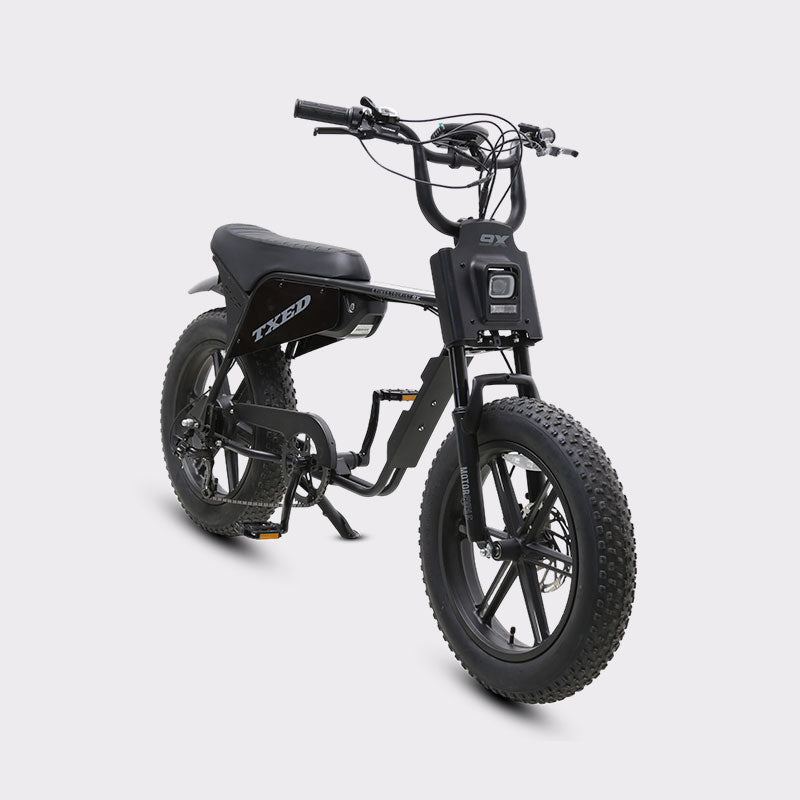

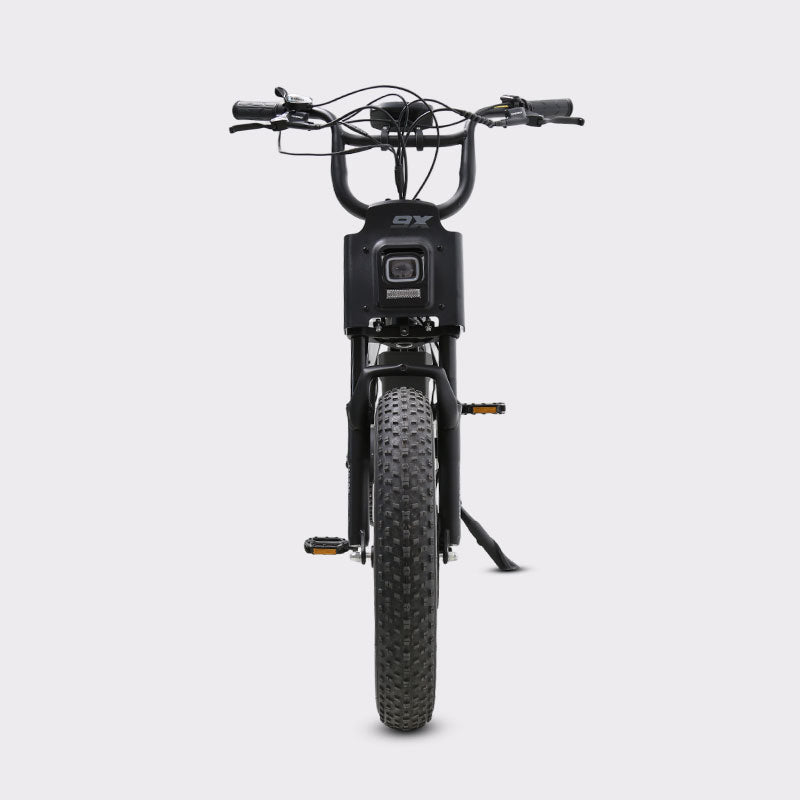

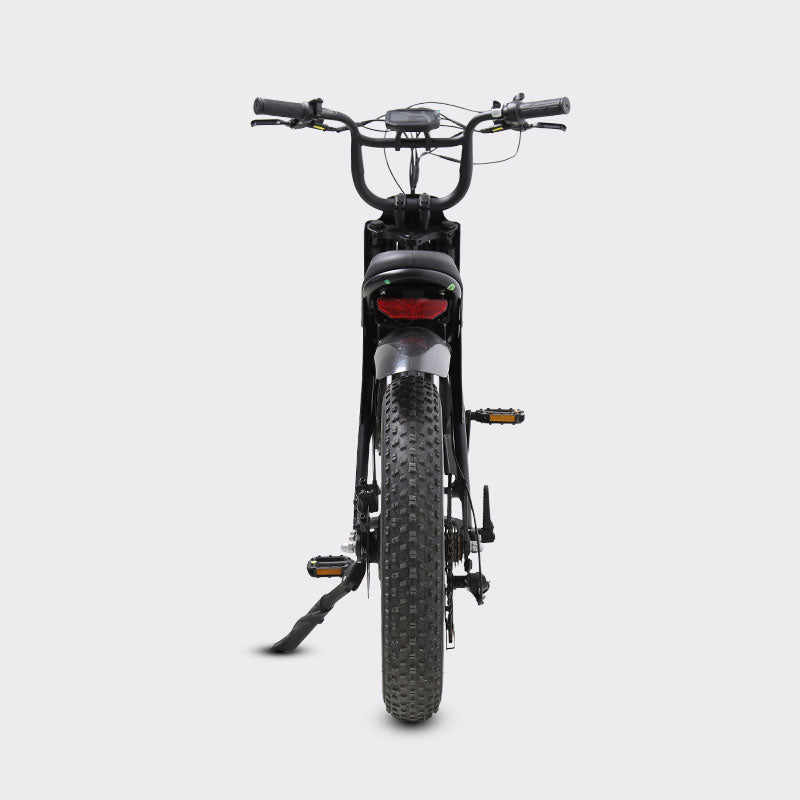

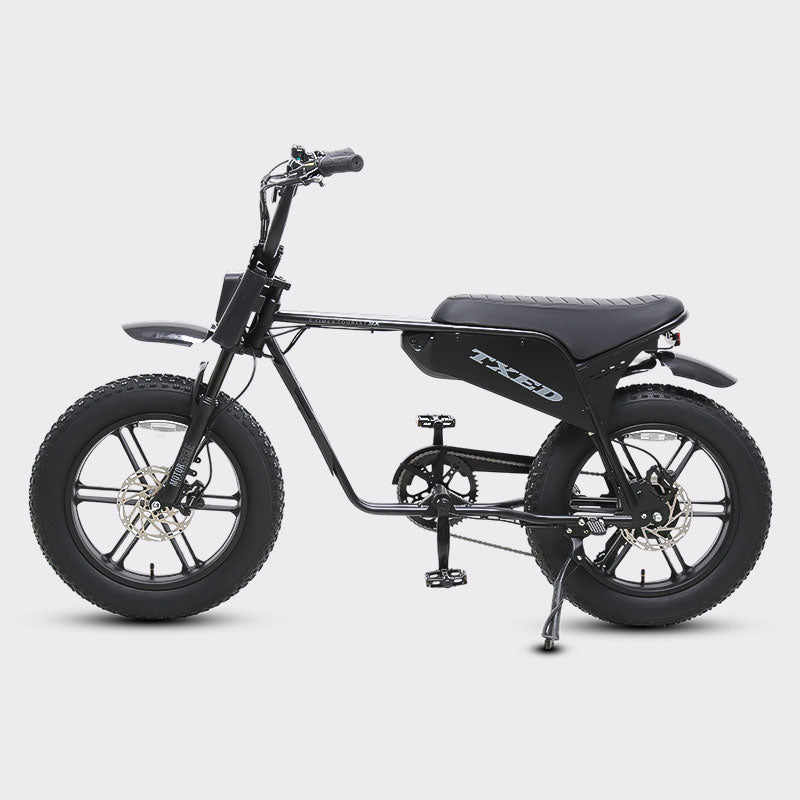

A closer look at Maverick
20 x 4.0" Fat Tyres
Wide, cushioned tyres provide stability and grip across mixed terrain. Built for comfort on city streets and beyond.

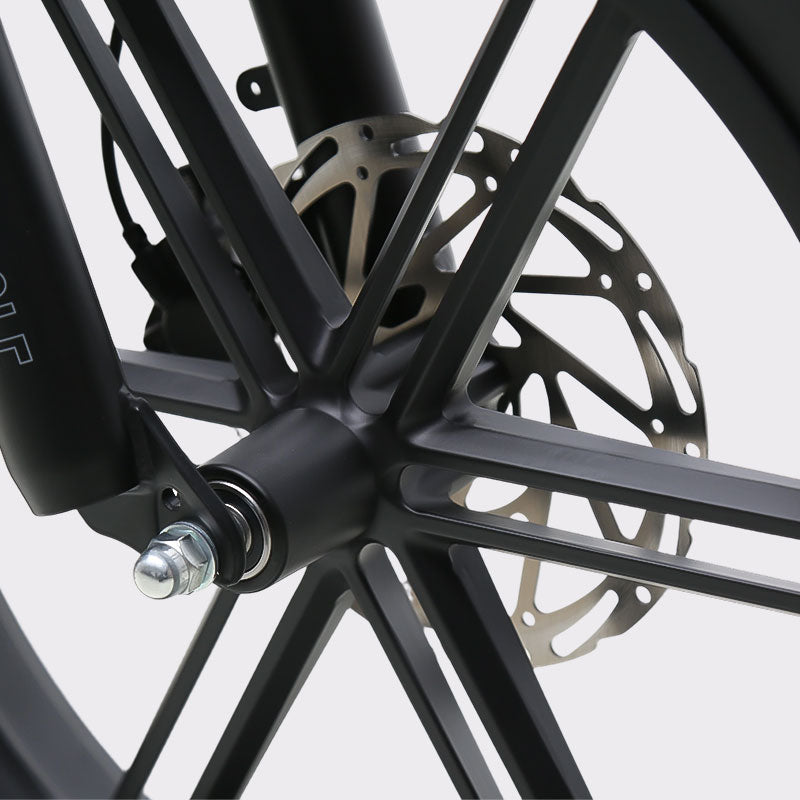

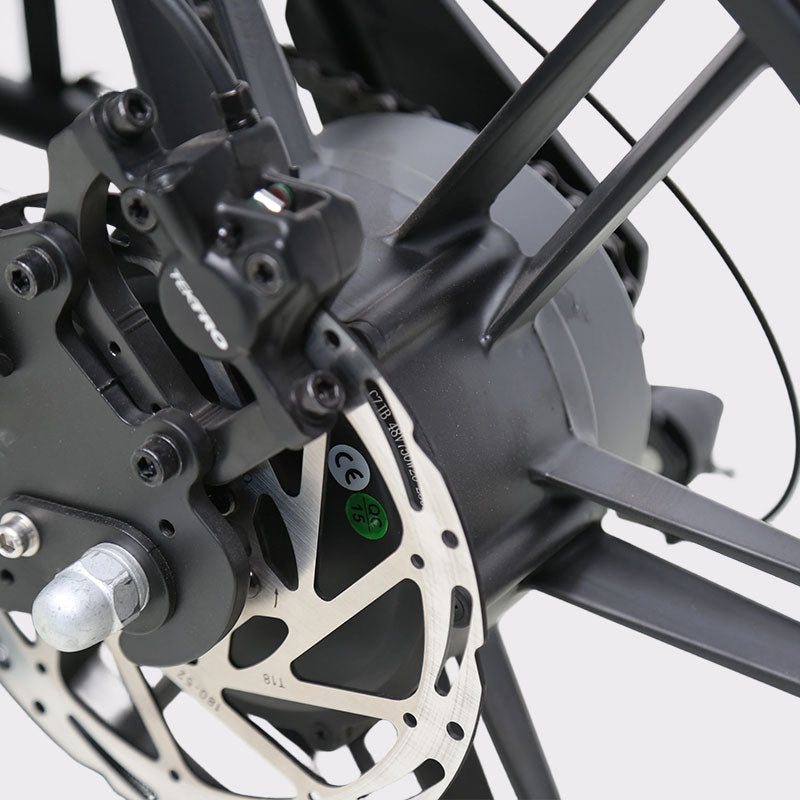

Hydraulic disc brakes
Front and rear hydraulic disc brakes with 180mm rotors help you manage your speed and slow down smoothly.
Shimano 7-speed
The Shimano 7-speed transmission provides smooth and precise shifting, offering versatility for various riding conditions, from flat roads to uphill climbs.

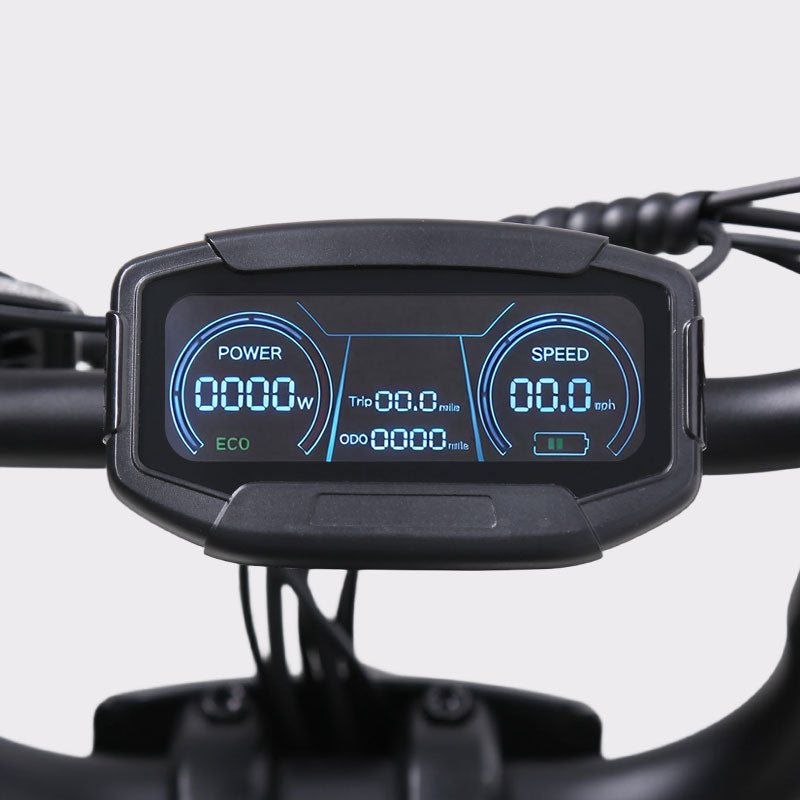

Smart LCD Display
Monitor speed, battery level, and assist mode with a clear smart display.

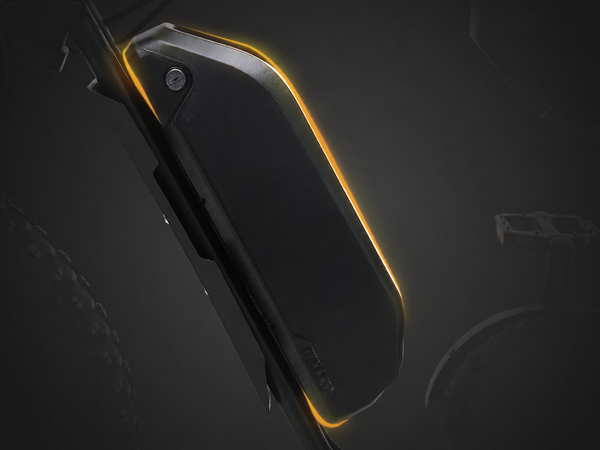

One 48V 15Ah Battery Per Bike
Each bike is supplied with one removable 48V 15Ah battery and provides an assisted range of up to 50 miles per bike, depending on rider weight, terrain, weather and assistance level.
Remove the battery for convenient charging indoors.

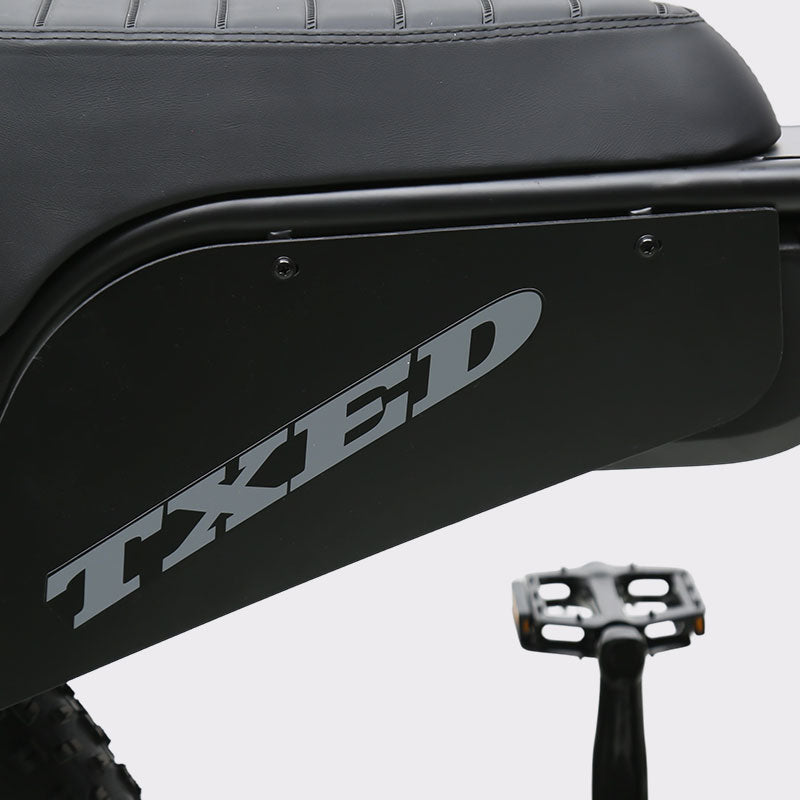

Long saddle
A long padded saddle is fitted to the Maverick.
Specifications & sizing
Technical specs
Power & battery
- Assisted Speed Cut-Off
- 15.5 mph (25 km/h)
- Motor
- 250W continuous-rated rear hub motor
- Assisted Range
- Up to 50 miles
- Battery
- 48V 15Ah
- Charging Time
- 6–8 hours
- Pedal Assist
- Levels 1-5
Bike & components
- Maximum payload
- 150 kg (330 lb)
- Weight
- Approx. 40.4 kg (89 lb)
- Shimano Shifter
- 7-Speed
- Tyres
- 20 × 4 inches
- Frame
- Steel
Size & fit
- ATotal Length
- 69.29"
- BHandlebar Height
- 42.91"
- CWheelbase
- 46.06"
- DChain Stay Length
- 19.68"
- EWheel Diameter
- 22.44"
- FHead Tube Length
- 4.33"
- GHandlebar Length
- 25.19"
- HSeat to Ground Height
- 30.90"
- IStandover Height
- 28.74"
- Suitable Rider Height
- 5'2"-6'3"
Maverick is listed at 69.29 inches in total length and approximately 40.4 kg. Mark out that length in your storage space, then check the doorway and any turns on the way in. If the route includes steps, consider how you will manage the bike before ordering.
Maverick questions, answered
Maverick has a 250W continuous-rated motor, with pedal assistance cutting off at 15.5 mph. These match the UK EAPC power and assistance limits. Riders must be 14 or over for public-road use.
Up to 50 miles with pedal assistance. Actual range varies with rider weight, terrain, weather and the assistance level used.
Yes. The 48V 15Ah battery is removable for charging indoors. A full charge takes approximately 6–8 hours with the supplied charger.
Maverick weighs approximately 40.4 kg (89 lb). For storage or transport, check the route and arrange help if you need to lift the bike.
The listed rider-height range is 5'2"–6'3" (approximately 157–191 cm), with a seat height of 30.9 inches (approximately 78.5 cm). Check the geometry and your fit.
Your bike arrives approximately 85% assembled. Tools and instructions are included. The handlebars are pre-fitted and need final positioning and securing; complete the remaining assembly and pre-ride checks using the supplied guide.
We dispatch from Birmingham. Order processing takes 1–2 business days; estimated delivery is 3–9 business days in total, depending on your postcode. We email tracking after dispatch.
Email salesuk@txedbikes.com for troubleshooting or return instructions. We cover return shipping for faulty, damaged or incorrect goods. Eligible non-quality returns have a 30-day window, with tracked return shipping arranged and paid by the customer.
We provide two-year frame and motor cover, one-year battery cover, troubleshooting and help with replacement parts. See component cover.
