What's in the box
85% assembled, with tools and instructions for final setup.
- Trail e-bike × 1
- 36V 13Ah battery × 1
- Battery charger × 1
- Assembly tool kit × 1
- Pedals × 2
- Handlebars × 1
- User manual × 1
- Battery keys
Trail setup help
Complete final assembly and pre-ride checks using the supplied manual and tools.
Our team can help with setup and troubleshooting. Email salesuk@txedbikes.com with your model and order number.
250W
Continuous-Rated Motor
Up to 31 miles
Range
15.5 MPH
Assisted Speed
36V 13Ah Battery
Removable Battery
27.5-inch Wheels
Electric Mountain Bike
100 kg
Max. rider weight
TXED ON YOUTUBE
Trail video guides
Rider reviews and assembly guides for TXED e-bikes.
More comfort on mixed routes

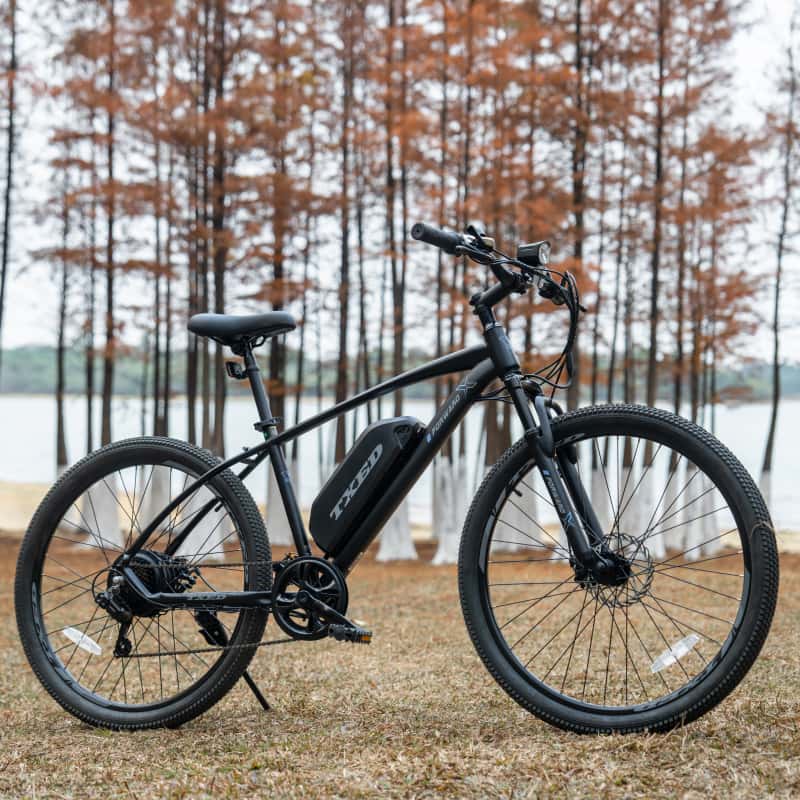

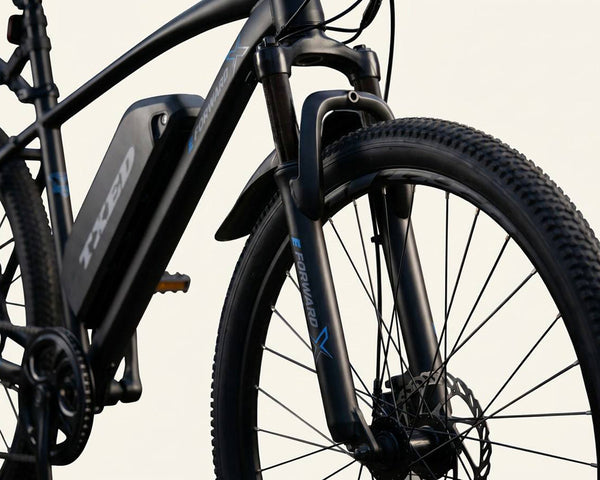

From everyday roads to gravel paths, the front suspension fork helps soften bumps. Trail’s 27.5-inch wheels and mountain-bike layout suit commutes and countryside rides.
A helping hand on the hills
Five levels of pedal assistance let you choose how much help you want. Use the Shimano 7-speed gears to find a comfortable pedalling rhythm as your route rises or levels out.
Controlled braking along the way
Front and rear mechanical disc brakes help you manage your speed and slow down as you approach a bend or come to a stop.
A closer look at Trail
27.5-inch wheels
27.5-inch wheels give Trail its mountain-bike feel for everyday roads, gravel paths and light trails.
Mechanical disc brakes
Front and rear mechanical disc brakes help you manage your speed and slow down along your route.

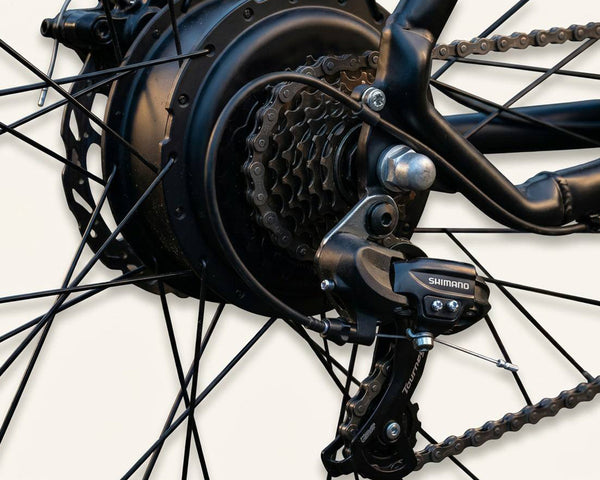

Shimano 7-speed
The Shimano 7-speed transmission provides smooth and precise shifting, offering versatility for various riding conditions, from flat roads to uphill climbs.

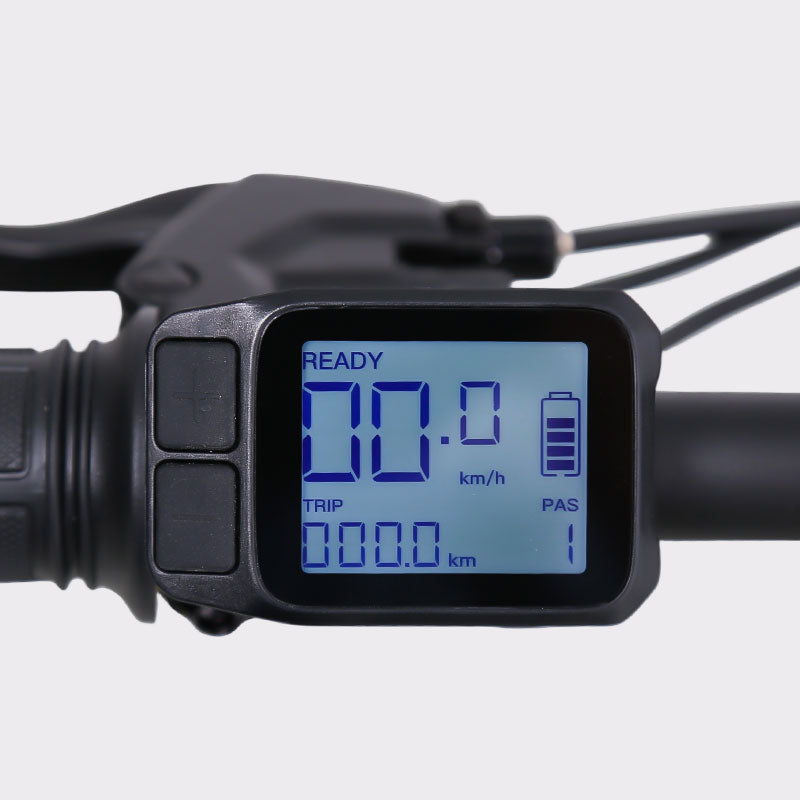

Smart LCD Display
Monitor speed, battery level, and assist mode with a clear smart display.
One 36V 13Ah Battery Per Bike
Each bike is supplied with one removable 36V 13Ah battery and provides an assisted range of up to 31 miles per bike, depending on rider weight, terrain, weather and assistance level.

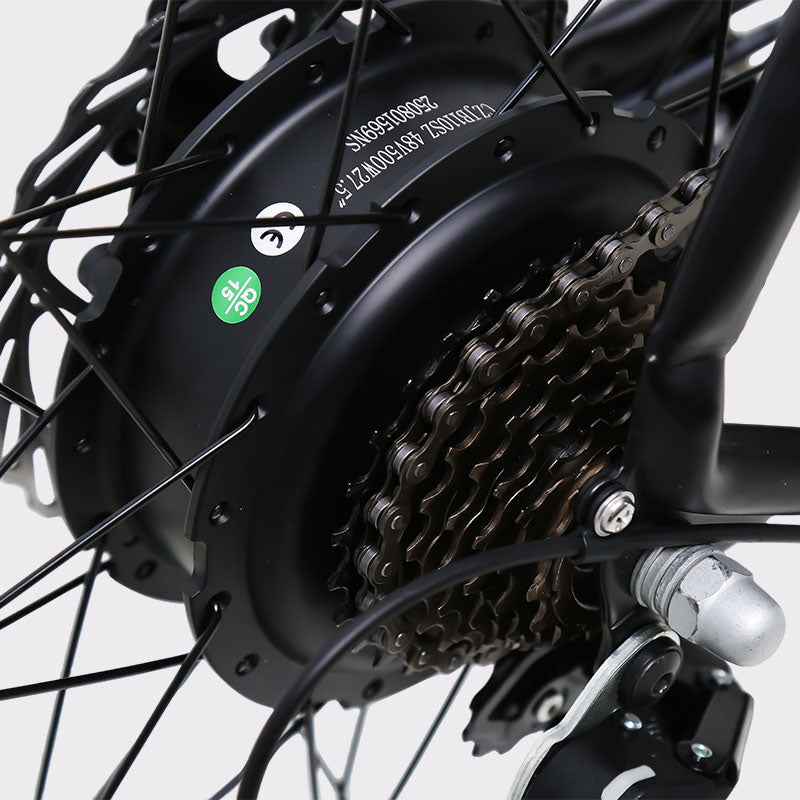

250W Power
A 250W continuous-rated rear hub motor provides smooth pedal assistance and cuts off at 15.5 mph (25 km/h).
Specifications & sizing
Technical specs
Power & battery
- Assisted Range
- Up to 31 miles
- Assisted Speed Cut-Off
- 15.5 mph (25 km/h)
- Charging Time
- 5-6 hours
- Motor
- 250W continuous-rated rear hub motor
- Battery
- 36V 13Ah
- Pedal Assist
- Levels 1-5
Bike & components
- Weight
- 52.9 lbs / 24 kg
- Maximum rider weight
- 100 kg
- Maximum payload (rider + carried load, excluding bike weight)
- 396 lbs / 180 kg
- Testing
- Tested by TÜV Rheinland (model sample)
Size & fit
- ATotal Length
- 72.83"
- BHandlebar Height
- 40.94"
- CWheelbase
- 45.27"
- DChain Stay Length
- 18.50"
- EWheel Diameter
- 27.55"
- FHead Tube Length
- 4.33"
- GHandlebar Length
- 28.34"
- HMaximum Seat to Ground Height
- 39.37"
- IMinimum Seat to Ground Height
- 32.28"
- JMaximum Seat to Pedal Height
- 27.16"
- KMinimum Seat to Pedal Height
- 14.17"
- LStandover Height
- 26.77"
Trail questions, answered
Trail has a 250W continuous-rated motor, with pedal assistance cutting off at 15.5 mph. These match the UK EAPC power and assistance limits. Riders must be 14 or over for public-road use.
Up to 31 miles with pedal assistance. Actual range varies with rider weight, terrain, weather and the assistance level used.
Yes. The 36V 13Ah battery is removable for charging indoors. A full charge takes approximately 5–6 hours with the supplied charger.
Trail weighs approximately 24 kg (52.9 lb). For storage or transport, check the route and arrange help if you need to lift the bike.
Trail has an adjustable saddle, with a listed seat-to-ground height of 32.28–39.37 inches and a standover height of 26.77 inches. Check the geometry and your fit.
Your bike arrives approximately 85% assembled, with tools and instructions for final setup. Complete the remaining assembly and pre-ride checks using the supplied guide.
We dispatch from Birmingham. Order processing takes 1–2 business days; estimated delivery is 3–9 business days in total, depending on your postcode. We email tracking after dispatch.
Email salesuk@txedbikes.com for troubleshooting or return instructions. We cover return shipping for faulty, damaged or incorrect goods. Eligible non-quality returns have a 30-day window, with tracked return shipping arranged and paid by the customer.
We provide two-year frame and motor cover, one-year battery cover, troubleshooting and help with replacement parts. See component cover.
The maximum rider weight is 100 kg. The maximum payload is 180 kg for the rider and carried load combined, excluding the weight of the bike itself.
